UML 2.0 Deployment DiagramsWelcome to my UML 2.0 Deployment Diagrams tutorial. You use deployment diagrams to show how software and hardware work together.

In this tutorial, I explain how to use nodes, artifacts, dependency arrows, communication lines, deployment specs and much more.

Following the video, you’ll find a deployment diagram cheat sheet. You should use that to help you understand everything covered in the video and as a cheat sheet for the future.

If you like videos like this, it helps to tell Google

Share if you know anyone interested in UML 🙂

UML Deployment Diagram Cheat Sheet

Click the image below to show it full screen

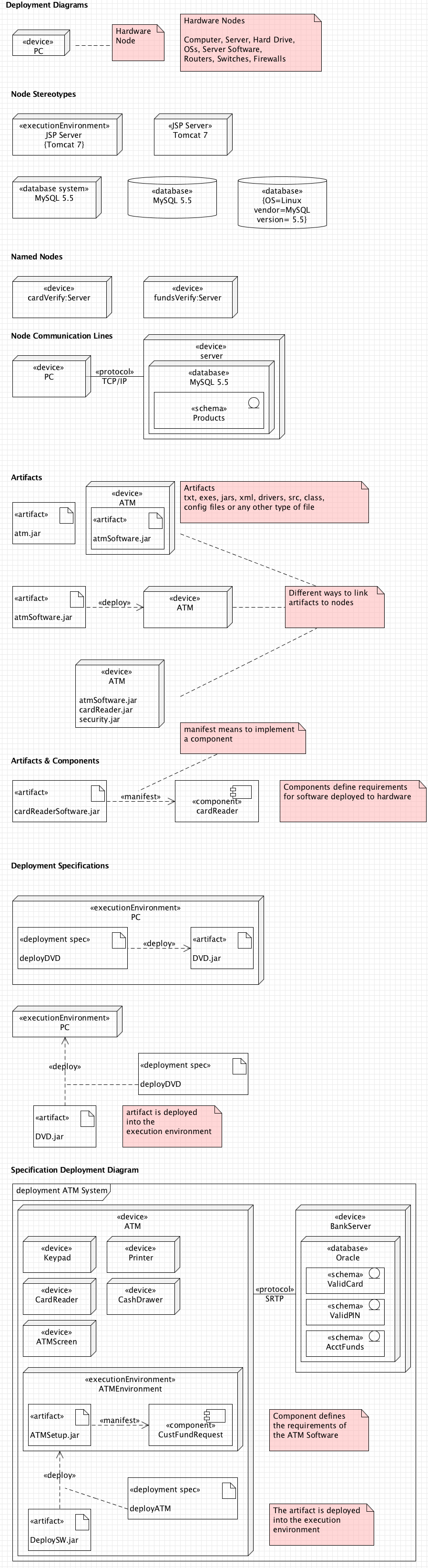

UML Deployment Diagram Cheat Sheet
