UML 2.0 Sequence DiagramsWelcome to my tutorial on UML 2.0 Sequence Diagrams! Sequence diagrams model interactions in your program and provide you with a logical way to layout your system. They are about showing the order of interactions between the parts of your program.

In making sequence diagrams, you describe which interactions are triggered and when. They focus in on the order of events in all interactions.

The video below covers just about everything and the cheat sheet that follows is there to re-enforce the specifics.

If you like videos like this, it helps to tell Google with a click here

Share if you have a friend that would like this

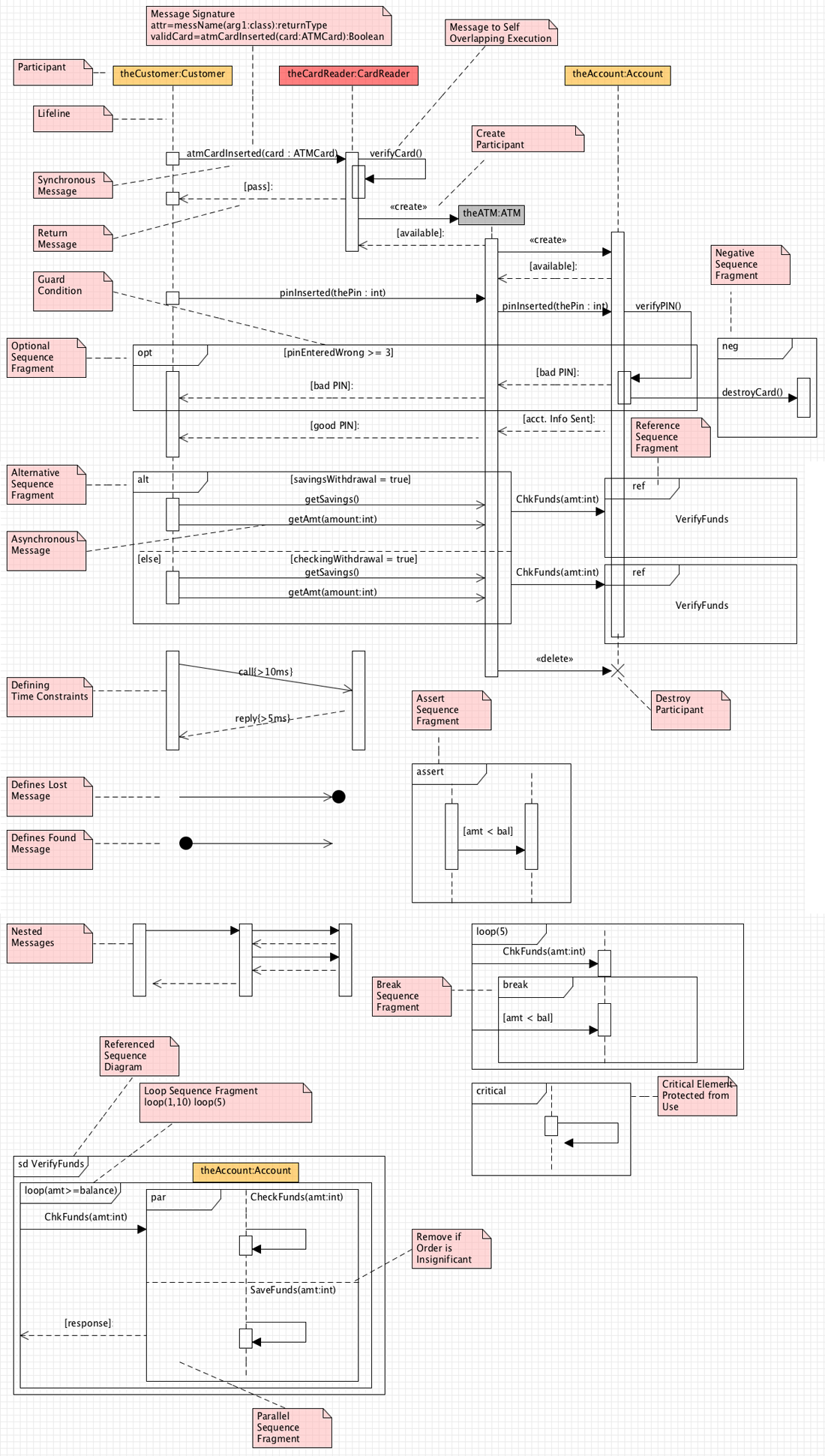

UML 2.0 Sequence Diagram

Click the image below 2 times to zoom in

UML 2.0 Sequence Diagram
